~ The equations for the time correction tilting structure ~

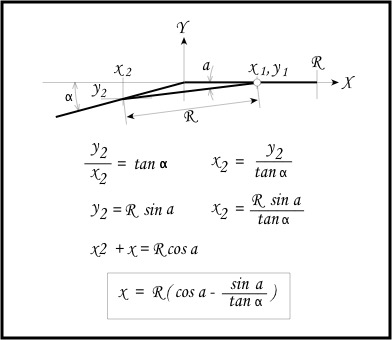

The radius of the date shadow wire is shown as R. The position of the date wire varies from x=R at a=0, to x=0 at a=α. The sundial structure slides along this support making contact at the two ends that are R distance apart.
This is included in the analemma calculation for the VDial plot. Click here to to see the Results
